Szczegóły Produktu:
|
| Kolor: | Czarny | Tworzywo: | EPDM |
|---|---|---|---|
| Średnica: | 25-90 | Długość: | 60-100 |
| OEM: | Rękaw EPDM | Nazwa produktu: | EPDM końcowa pokrywa |
| Przerwanie przerwy: | 800% | ||
| Podkreślić: | EPDM Cable End Cap,Cold Shrink End Caps,High Elastic |
||
Product Name:

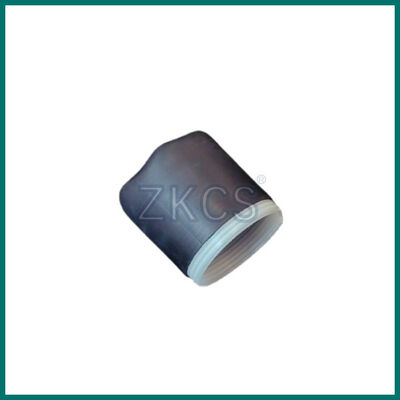

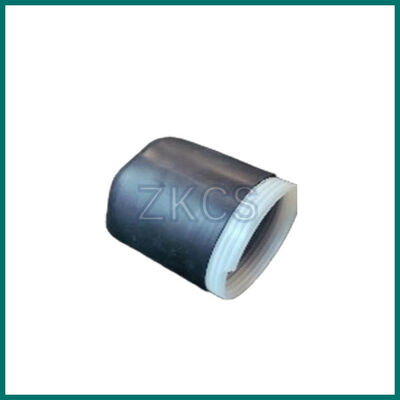

Black EPDM Cable End Cap – Environmental Seal & Mechanical Protection for Exposed Cable Ends
Product Description:
This EPDM end cap is designed for reliable sealing of all types of cable ends. Each EPDM end cap offers excellent flexibility, aging resistance, and long-lasting performance. Whether used indoors or outdoors, this EPDM end cap ensures a tight seal against moisture, dust, and air. Made from high-grade EPDM rubber, every EPDM end cap provides durable protection for cable termination.
Product Application:
This EPDM end cap is suitable for sealing all types of cable ends, including:
PVC and LSOH type cables
Lead sheath cables
Various armored wires
Braided armored cables
Any EPDM end cap from our range works perfectly for electrical, telecommunication, and power distribution systems. Choose the right EPDM end cap for outdoor junction boxes, solar cable installations, automotive wiring, and industrial equipment. This EPDM end cap is also ideal for humid, underground, or UV-exposed environments.
Product Features:
EPDM Material – Each EPDM end cap resists aging, ozone, and weathering.
Excellent Sealing Performance – Every EPDM end cap provides dust-tight and watertight closure.
Waterproof, Insulated & UV Resistant – One EPDM end cap works perfectly under direct sun or rain, with good electrical insulation.
Easy Installation – No tools needed; simply push the EPDM end cap onto the cable end.
Technical Parameters:
| No | Model | Max. diameter (mm) | Min. diameter (mm) | Thickness After Shrink(±0.2mm) |
| FM-1 | 25×60 | 20.9 | 11.6 | 2.7 |
| FM-2 | 35×75 | 30.1 | 15.9 | 2.7 |
| FM-3 | 55×82 | 49.2 | 26 | 3.0 |
| FM-4 | 90×100 | 84.3 | 43.5 | 3.0 |
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
Material: EPDM
Hardness: 60 ± 5 Shore A
Operating Temperature: -40°C to +120°C
Color: Black (custom available)
Selection Tip: Choose the EPDM end cap size according to your cable diameter. A correctly selected EPDM end cap ensures optimal sealing performance.
Application reference pic:
FAQ:
Q1: Is this EPDM end cap reusable?
A: Yes. You can remove and reinstall the same EPDM end cap multiple times if not physically damaged.
Q2: Can it be used on lead sheath cables?
A: Yes. This EPDM end cap works perfectly on lead sheath cables, PVC, LSOH, armored, and braided armored cables.
Q3: Do I need glue to fix the EPDM end cap?
A: No. Just push it onto the cable end. The EPDM end cap holds tightly by itself.
Q4: Is this EPDM end cap UV resistant for outdoor use?
A: Yes. Every EPDM end cap is UV resistant and suitable for long-term outdoor exposure.
Q5: What temperature range can this EPDM end cap withstand?
A: This EPDM end cap can operate from -40°C to +120°C. Whether in freezing cold or high heat, each EPDM end cap maintains its flexibility and sealing performance.
