Szczegóły Produktu:
|
| Tworzywo: | EPDM | Długość: | Dostosowane |
|---|---|---|---|
| Średnica: | 25-90mm | OEM: | Tak |
| uszczelka: | Karton | ||
| Podkreślić: | Cold Shrink Technology,Self-Cleaning Function,High Creepage Performance |
||
Product Description
EPDM end cap is a high‑performance sealing solution designed for terminating the ends of various cable types. It is available in four practical sizes: 25×60mm, 35×75mm, 55×82mm, and 90×100mm. Every EPDM end cap is made of premium EPDM rubber, offering excellent weather resistance, UV protection, and mechanical strength, making it ideal for both indoor and outdoor installations.
Application
he EPDM end cap is suitable for sealing the ends of all types of cables, including:
EPR (Ethylene Propylene Rubber) jacketed cables
PVC and LSOH (Low Smoke Zero Halogen) cables
Lead sheath cables
Various armored wire or braided armored cables
In power distribution, telecommunications, industrial wiring, and cable repair or termination projects, EPDM end cap is a reliable and highly efficient sealing component.
Key Features
EPDM Material– Each EPDM end cap is manufactured from high‑grade EPDM rubber, ensuring superb elasticity, aging resistance, and long service life.
Superior Sealing Performance – This EPDM end cap provides a tight, reliable seal that effectively prevents moisture, dust, and contaminants from entering the cable end.
Waterproof, Insulating & UV‑Resistant – The EPDM end cap is not only waterproof and electrically insulating but also withstands prolonged sun exposure without cracking or aging.
Easy Installation – With a simple push‑on design, the EPDM end cap** requires no special tools or complex procedures, saving significant installation time and labor.
| No | Model | Max. diameter (mm) | Min. diameter (mm) | Thickness After Shrink(±0.5mm) | Length after shrink(mm) |
| FM-1 | 25×60 | 20.9 | 11.6 | 3.0 | 60+10mm |
| FM-2 | 35×75 | 30.1 | 15.9 | 3.0 | 75±10mm |
| FM-3 | 55×82 | 49.2 | 26 | 3.0 | 82+10mm |
| FM-4 | 90×100 | 84.3 | 43.5 | 3.0 | 100±10mm |
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |

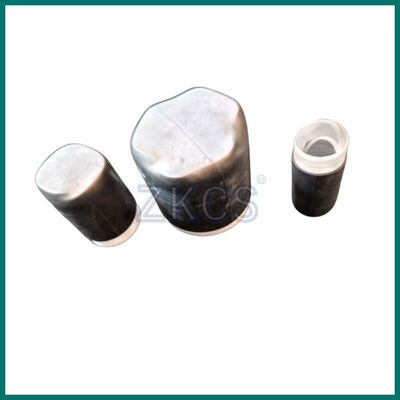

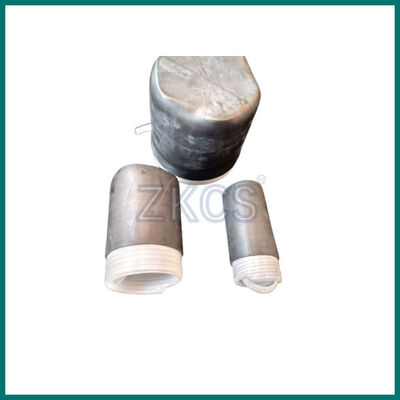

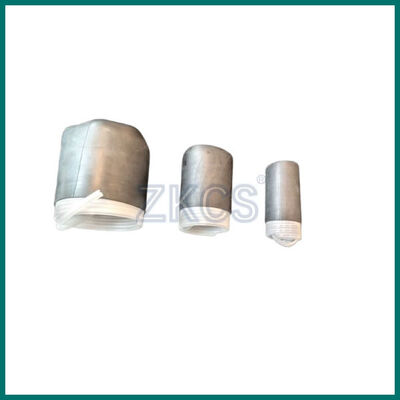

Product picture
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3: Is the EPDM end cap easy to install?
Yes. The EPDM end capfeatures a simple push-on design that requires no special tools or complex procedures, saving significant time and labor during installation.
4: Is the EPDM end cap waterproof and UV-resistant?
A4: Absolutely. Every EPDM end capis both waterproof and UV-resistant, effectively preventing moisture ingress and withstanding prolonged sun exposure without cracking or aging.
5: What sizes are available for the EPDM end cap?
The EPDM end cap** comes in four practical sizes: 25×60mm, 35×75mm, 55×82mm, and 90×100mm, to fit different cable diameters.
