Szczegóły Produktu:
|
| Tworzywo: | Silikon | Kolor: | Czarny lub szary |
|---|---|---|---|
| Długość: | Dostosowane | Nazwa: | Zimna rurka skurczowa |
| Aplikacja: | Ochrona izolacji | Nazwa produktu: | Rurka izolacyjna Silikonowa złączka termokurczliwa do ochrony kabli |
| Uszczelka: | Karton | Darmowe próbki: | Tak |
| Podkreślić: | SiliconeColdShrink,WaterproofSealing,Stable Mechanical Protection |
||
Product name:

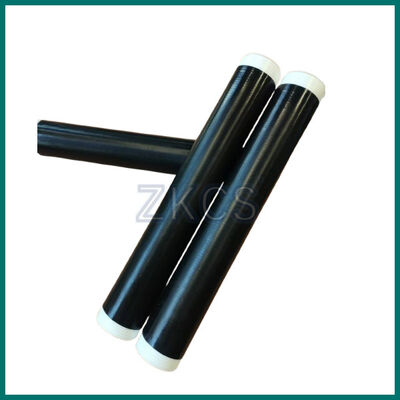

High Reliability Silicone Cold Shrink Tube for cable insulation
Description:
The All-Weather Silicone Cold Shrink Tube is a pre-expanded, heat-free insulation solution designed to deliver dependable sealing and protection for cables and connectors in challenging environments.
Features:
Heat-free installation for enhanced safety
Uniform shrinking for consistent sealing performance
Excellent electrical insulation properties
Applications
Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts
Introduction:
EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
