Szczegóły Produktu:
|
| Tworzywo: | Silikon | Kolor: | Czarny lub szary |
|---|---|---|---|
| Długość: | Dostosowane | Nazwa: | Zimna rurka skurczowa |
| Aplikacja: | Ochrona izolacji | Nazwa produktu: | Zestaw izolacji termokurczliwej Terminal Tink podobny do 3m |
| Uszczelka: | Karton | Darmowe próbki: | Tak |
| Podkreślić: | Excellent Electrical Insulation,Power Cable Protection,silicone cold shrink tube |
||
Product name:
Silicone Cold Shrink Tube for Electrical Insulation
Description:
Silicone Cold Shrink Tube is a pre-expanded rubber sleeve that shrinks automatically when the inner core is removed, providing a tight, reliable seal without the need for heat or special tools.
Made from high-quality silicone rubber, it offers excellent electrical insulation, weather resistance, and long-term durability, even in harsh outdoor environments.
Features:
Applications
Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts

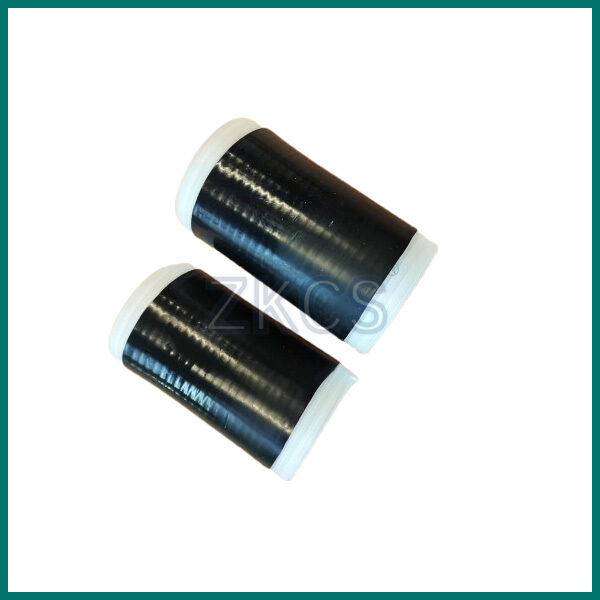

Picture for your reference.
Introduction:
Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: | |||||
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 | |
